Eos Laser Mapping™ for ArcGIS

Map Assets Without Having to Physically Occupy Them

Eos is excited to bring you the world’s first laser mapping solution for Esri’s ArcGIS apps. The Eos Laser Mapping™ solution is for field crews that need to map hard-to-occupy assets with 3D, survey-grade accuracy — without having to physically stand on top of every single point. This is great when the assets you need to collect are located in environments that are either GNSS-impaired (with poor line-of-sight to positioning satellites), or in areas that are difficult and dangerous to reach. Eos Laser Mapping™ is currently available for iPad® and iPhone® as a free solution, in conjunction with our partnerships between Esri and Laser Technology (LTI).

Eos Laser Mapping GPS GNSS GIS Laser Offsets LTI Data Collection

Key Benefits of Eos Laser Mapping™

Increase Accuracy and Efficiency

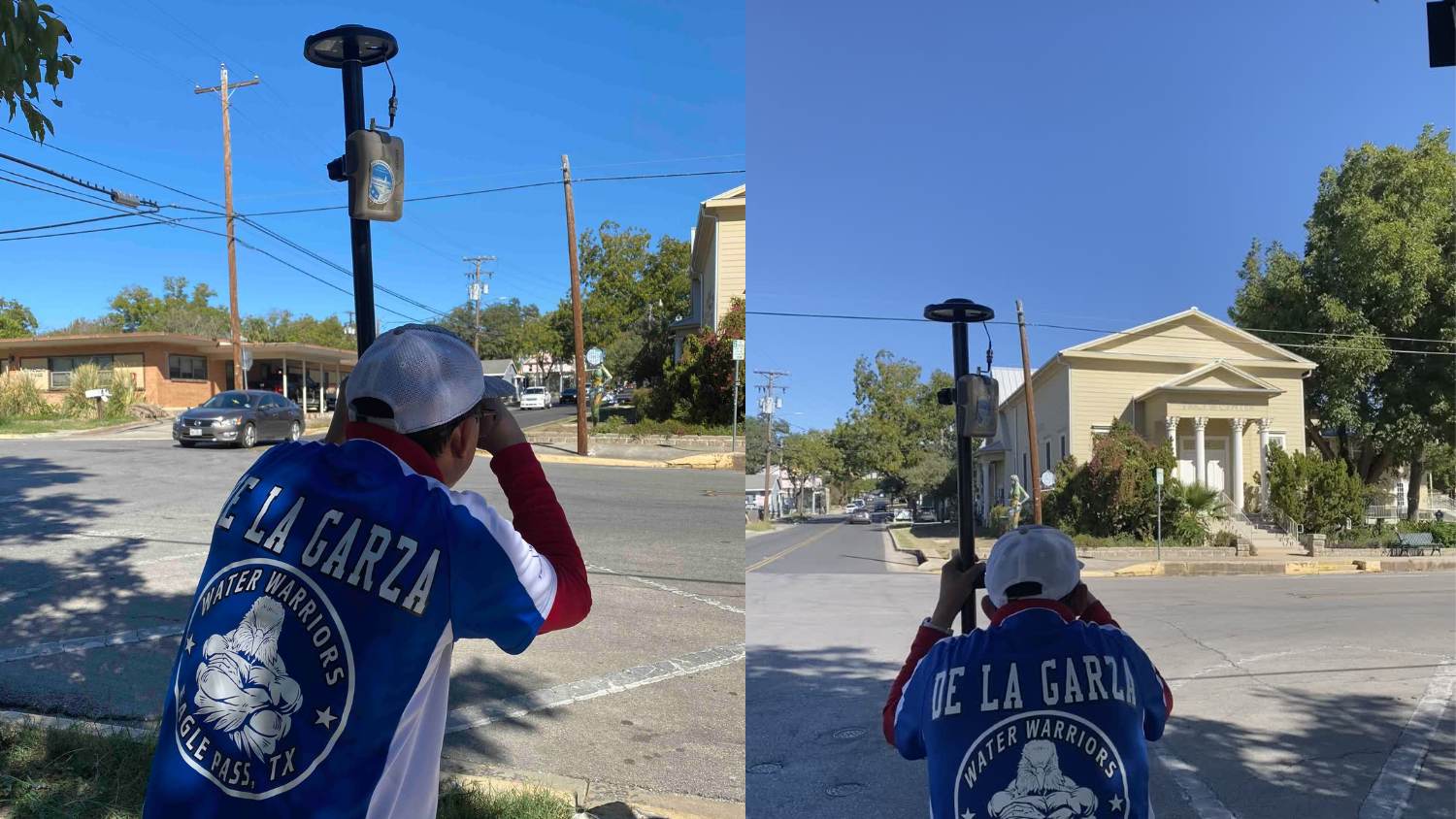

Eos Laser Mapping™ lets a technician stand hundreds of meters away from his target, while collecting it with submeter or centimeter accuracy.

Keep Crews Safer

Keep your crews safer when they can map assets, such as a manhole located in a busy street intersection, from a safe distance away.

Choose From 3 Mapping Methods

With three laser mapping methods to choose from, you can pick the workflow that provides the greatest combination of mobility and efficiency.

What Are The 3 Eos Laser Mapping™ Methods?

Eos Laser Mapping: Laser offsets and sideshots for Esri ArcGIS with Laser Tech LTI laser rangefinders and Eos Arrow GNSS receivers GPS mapping, total station like workflow

Choose From 3 Laser Mapping Methods

Range-Azimuth, Range-Backsight, and Range-Range

Customers interested in Eos Laser Mapping™ can choose from three methods: Range-Azimuth, Range-Backsight, and Range-Range (sometimes called “Range-Intersect”). Play the video for an overview of all three methods, and which method is best for which type of data collection. All three methods require the following equipment:

  • An Arrow Series® GNSS ReceiverRA, RB, RR
  • Eos Tools ProRA, RB, RR
  • ArcGIS Field Maps (or ArcGIS Collector)RA, RB, RR
  • iOS® or Android Mobile DeviceRA, RB, RR
  • An LTI Laser Rangefinder
  • Eos Bridge™ (recommended with the TruPulse 360 for the Range-Azimuth method)RA
  • Recommended Mounting Equipment (varies by method):
    • Range PoleRA, RR
    • TripodRB
    • LTI TruAngle Mounting Bracket (with TruAngle)RB
    • LTI TruPulse Range Pole BracketRA, RR

RAIndicates equipment for Range-Azimuth laser mapping method

RBIndicates equipment for Range-Backsight laser mapping method

RRIndicates equipment for Range-Range (Range-Intersect) laser mapping method

How to Choose Your Method >

What Hardware and Software is Required for Eos Laser Mapping™?

Eos Laser Mapping™ is a free solution from Eos Positioning Systems. However, you must have all the required hardware and software components in order to use the solution.
